Magewell Pro Convert for NDI to SDI

Magewell Pro Convert for NDI to SDI

NDI / IP Stream to SDI Standalone Decoder

P/N: 641500000

Product Category

NDI / IP Stream to SDI Standalone Decoder

Decoding Input Formats

NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP

Decoding Specifications

Decoding up to 2Kp60

SDI Output Interface

SD/HD/3G-SDI BNC output

Output Resolution and Frame Rate

Max 1920x1080p60

Regulatory Certifications

Product Description

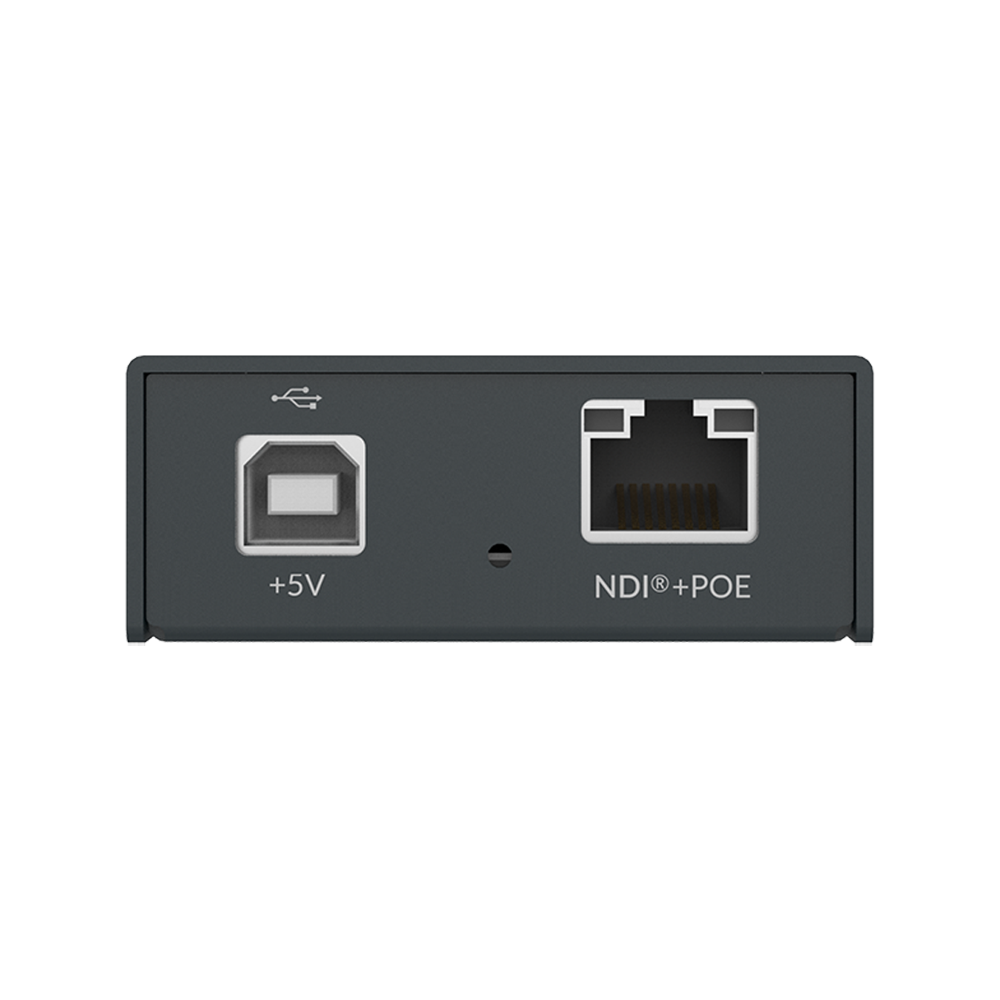

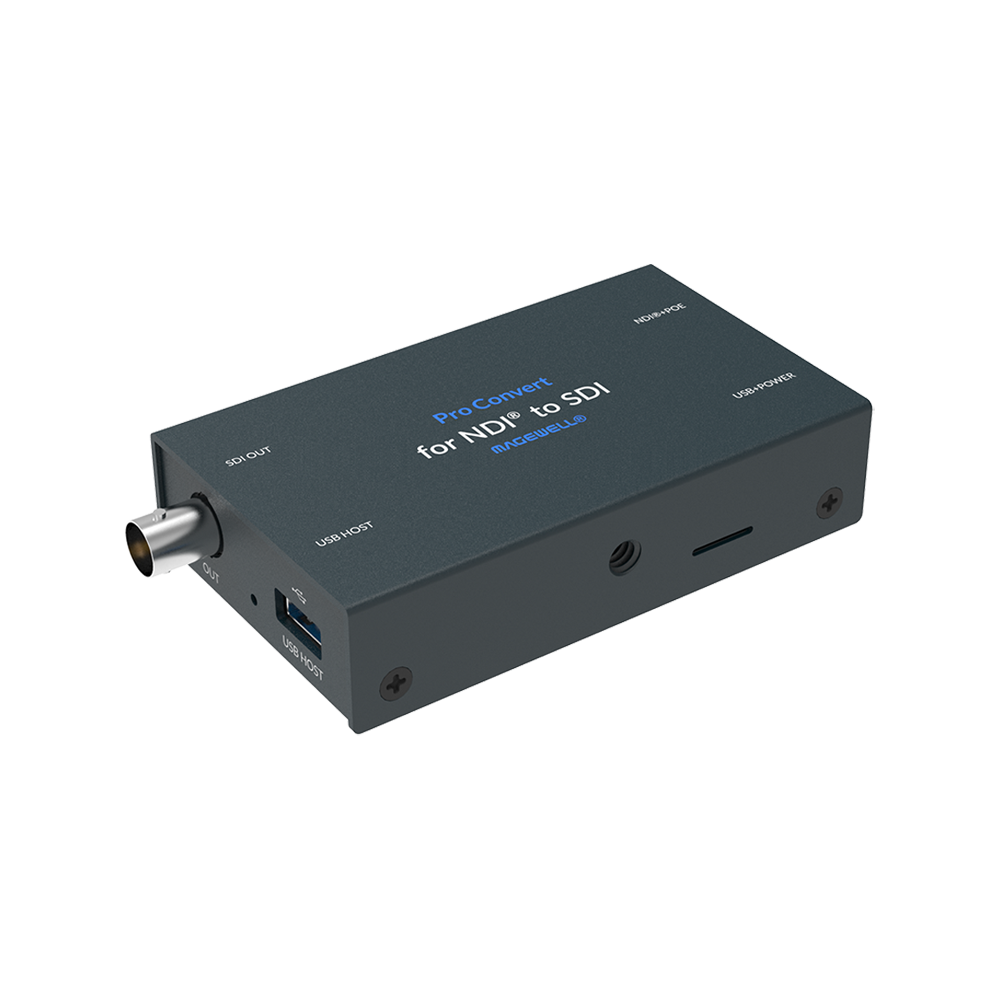

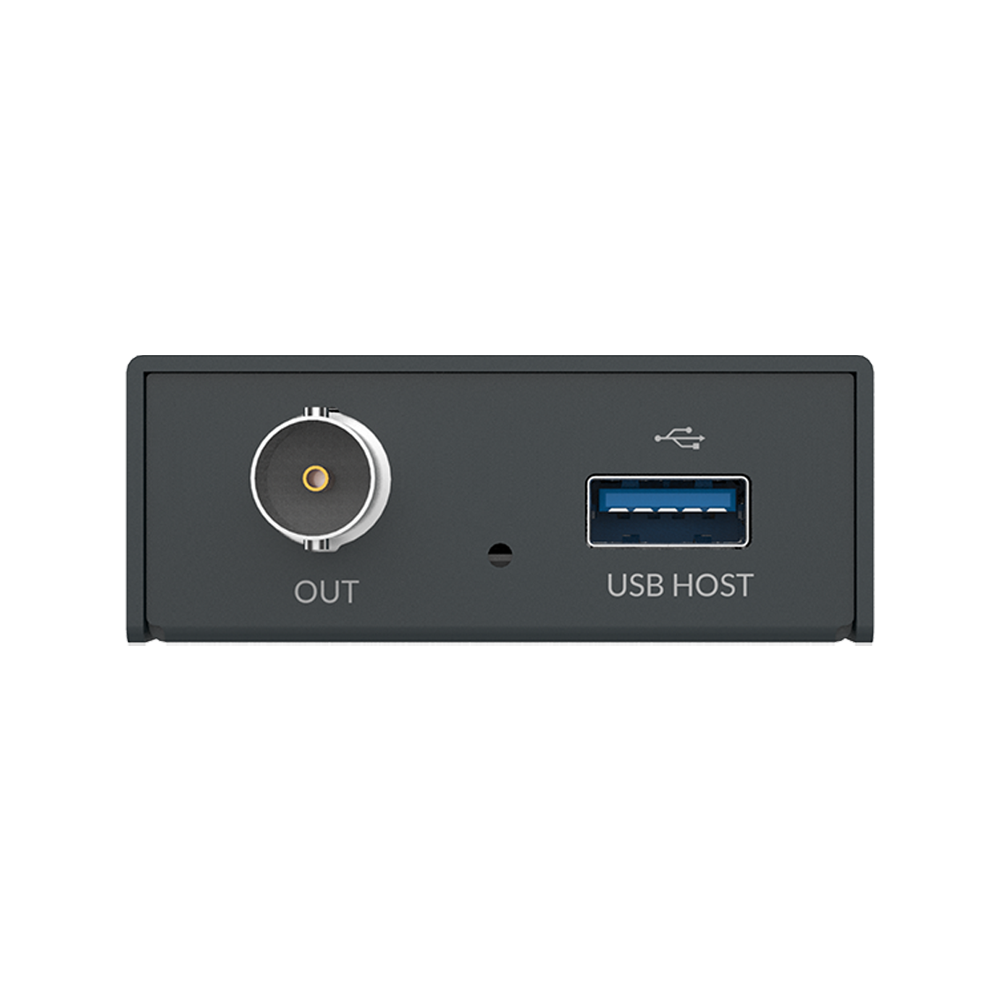

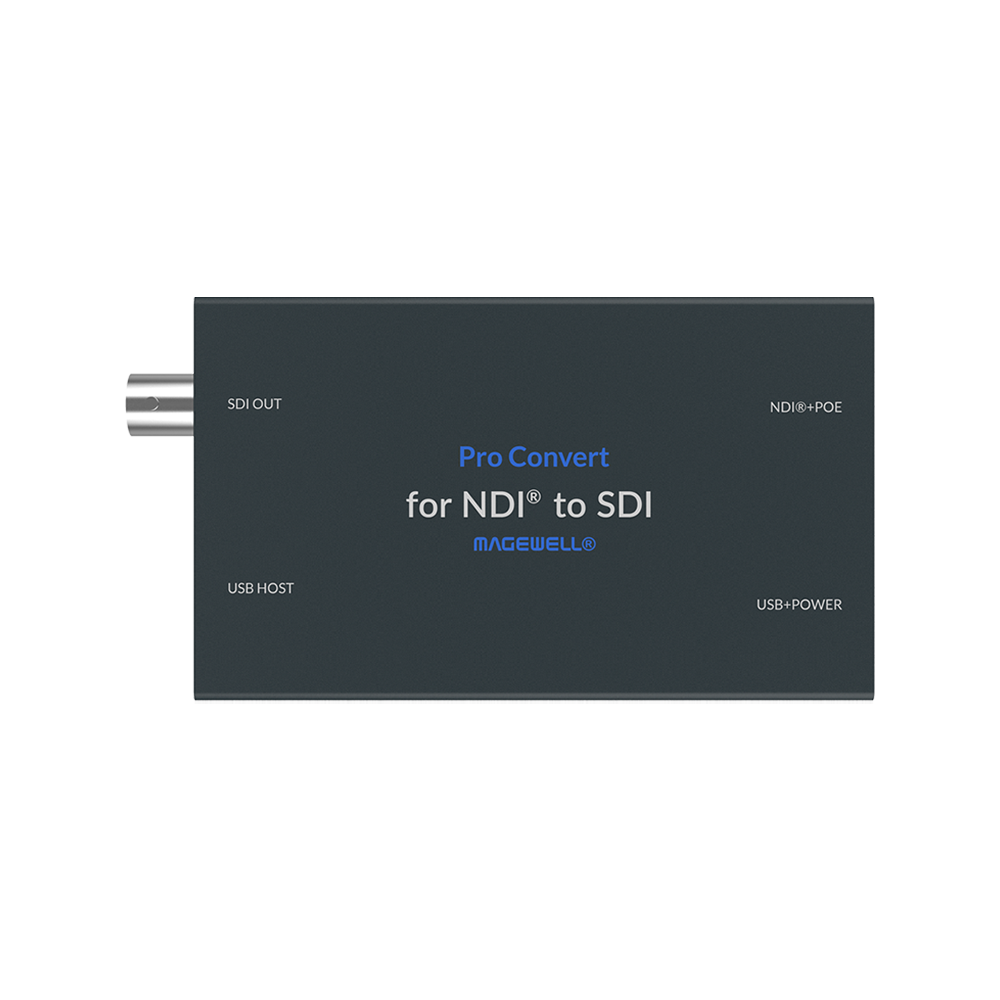

The Magewell Pro Convert for NDI to SDI is a standalone IP-to-SDI decoder that decodes NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP streams in real time and outputs them as SD/HD/3G-SDI via BNC, with a maximum output of 1920x1080p60. The device features a built-in Gigabit Ethernet interface with IEEE 802.3af PoE, so a single network cable handles both network connectivity and power. At just 100.9mm x 60.2mm x 23.3mm, it is well suited for flexible deployment in broadcast trucks, studios, signal extension, and NDI-to-legacy-SDI bridging applications. Full remote configuration and real-time signal monitoring are available through the WebUI, Control Hub, and HTTP API, with advanced processing capabilities including OSD overlay, deinterlacing, resolution and frame-rate conversion, audio gain, sample-rate adjustment, and channel mapping.
